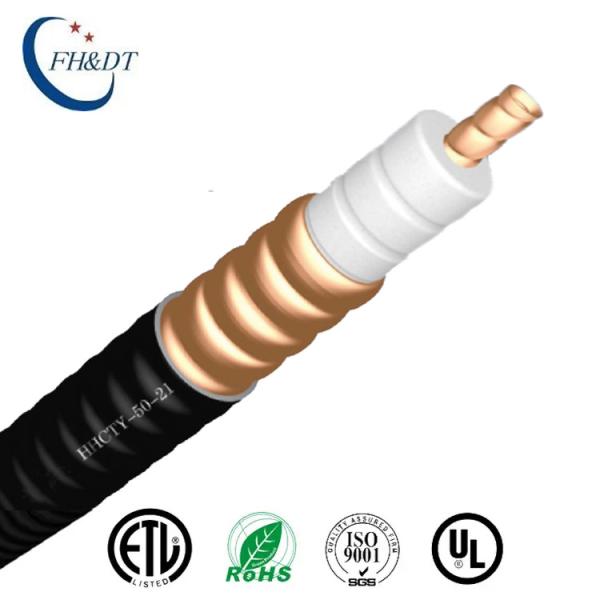

    Copper Tube 50 Ohm Super Flexible Coaxial Cable 7/8″ Retardant

    Ask Lasest Price
    Brand Name : FHDT
    Model Number : Fire retardant Jacket 7/8″ SF HHTAYZ-50-21
    Certification : ISO,RoHs, ETL, UL, CPR
    Price : Negotiable
    Payment Terms : Usually T/T, other terms negotiable
    Delivery Time : 3-4 weeks for mass production
    • Product Details
    • Company Profile

    Copper Tube 50 Ohm Super Flexible Coaxial Cable 7/8″ Retardant


    Super Flexible 50Ohm Copper-tube Flame retardant Coaxial cable 7/8 Inch(7/8″SF Retardant) HHTAYZ-50-21


    Quick Detail:

    • Low Attenuation
    • Low VSWR,
    • High expansion
    • High power rating
    • Excellent environmental performance
    • Excellent Mechanical Performance
    • Customized Cable

    Description:

    A feeder is a transmission channel for electromagnetic waves, whose function is to transmit high-frequency energy. The feeder cable can effectively transmit the signal received by the antenna, with small distortion, low loss, strong anti-interference capability, and a good impedance match between the feed line and the antenna, and between the signal input of the receiver. In large projects, Coaxial cable is an essential cable, simple connection, and low failure rate after installation. Accept customization of OEM or ODM.


    Specifications:

    Construction

    Inner conductor
    Corrugated Copper-tube
    Diameter(mm)9.40±0.10
    Insulation
    3 layers of Insulation
    Diameter(mm)22.40±0.30
    Outer conductor
    Corrugated Copper-tube
    Outer conductor (mm)24.90±0.30
    Jacket
    Thickness(mm)1.10±0.20
    Diameter(mm)27.50±0.30

    Engineering Data

    Minimum Bending Radius (mm)
    Single Bending80
    Multiple Bending125
    Temperature range(℃)
    Standard jacket-40~+70
    Fire Retardant Jacket-25~+70

    Electrical Performance

    Impedance (Ω)50±1
    Capacitance (pF/m)74±2
    Velocity (%)88
    Dc Breakdown, volts(V)≥6000
    Shielding Effectiveness(dB)>>120
    Cut-off Frequenc(GHz)4.9
    Attenuation(dB/100m)and average power(kW)
    FrequencyAttenuationAverage
    Power
    150 MHz1.617.16
    450 MHz2.883.85
    800 MHz3.942.79
    900 MHz4.222.61
    1800 MHz6.211.78
    2000 MHz6.591.65
    2500 MHz7.491.47
    3000 MHz8.351.32
    3500 MHz9.111.21
    4000 MHz9.861.15
    5000 MHz11.271.01
    VSWR
    820MHz~960MHz1.10
    1700MHz~2200MHz1.13
    2200MHz~2700MHz1.15
    3300MHz~3600MHz1.20
    4400MHz~5000MHz1.20

    Standard Conditions:

    For attenuation: VSWR 1.0, cable temperature 20℃

    For average power:VSWR 1.0,ambient temperature 40℃

    Inner conductor temperature 100℃.No solar loading.

    Maximum VSWR and attenuation value shall be 105% off the nominal value.


    Applications:

    It is usually used in wireless communication base stations.
