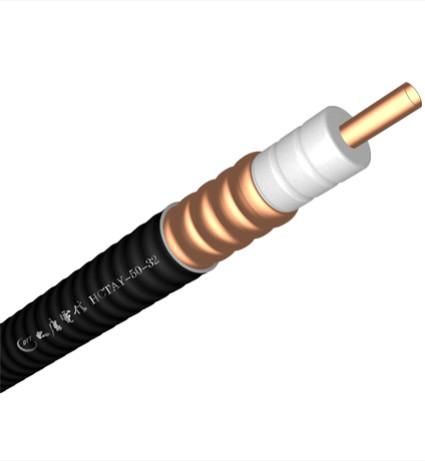

    LZSH Jacket 1-1/4″ Copper Retardant Flexible Coaxial Cable OEM ODM

    Ask Lasest Price
    Brand Name : FHDT
    Model Number : Fire retardant Jacket 1-1/4″Retardant HCTAYZ-50-32
    Certification : ISO,RoHs, ETL, UL, CPR
    Price : Negotiable
    Payment Terms : Usually T/T, other terms negotiable
    Delivery Time : 3-4 weeks for mass production
    • Product Details
    • Company Profile

    LZSH Jacket 1-1/4″ Copper Retardant Flexible Coaxial Cable OEM ODM


    50 Ohm Wireless Communication Indoor LZSH Jacket Copper retardant Feeder cable (1-1/4″Retardant)HCTAYZ-50-32


    Quick Detail:

    • Low Attenuation
    • Low VSWR,
    • High expansion
    • High power rating
    • Excellent environmental performance
    • Excellent Mechanical Performance
    • Customized Cable

    Description:

    A feeder is a transmission channel for electromagnetic waves, whose function is to transmit high-frequency energy. The feeder cable can effectively transmit the signal received by the antenna, with small distortion, low loss, strong anti-interference capability, and a good impedance match between the feed line and the antenna, and between the signal input of the receiver. In large projects, Coaxial cable is an essential cable, simple connection, and low failure rate after installation. Accept customization of OEM or ODM.


    Specifications:

    Construction

    Inner conductor
    Smooth Copper-tube
    Diameter(mm)13.10±0.10
    Insulation
    3 layers of Insulation
    Diameter(mm)32.50±0.50
    Outer conductor
    Corrugated Copper-tube
    Diameter over copper
    Outer conductor (mm)35.80±0.30
    Jacket
    Thickness(mm)1.50±0.20
    Diameter(mm)39.00±0.40

    Engineering Data

    Minimum Bending Radius (mm)
    Single Bending200
    Multiple Bending380
    Temperature range(℃)
    Standard jacket-40~+70
    Fire Retardant Jacket-25~+70

    Electrical Performance

    Impedance (Ω)50±1
    Capacitance (pF/m)75±2
    Velocity (%)89
    Dc Breakdown, volts(V)≥9000
    Shielding Effectiveness(dB)>>120
    Cut-off Frequenc(GHz)4.0
    Attenuation(dB/100m)and average power(kW)
    FrequencyAttenuationAverage
    Power
    150 MHz1.039.52
    450 MHz1.875.20
    800 MHz2.593.59
    900 MHz2.773.52
    1800 MHz4.162.33
    2000 MHz4.432.20
    2500 MHz5.081.92
    3000 MHz5.681.70
    3500 MHz6.361.56
    3600 MHz6.481.51
    VSWR
    820MHz~960MHz1.10
    1700MHz~2200MHz1.13
    2200MHz~2700MHz1.15
    3300MHz~3600MHz1.20

    Standard Conditions:

    For attenuation: VSWR 1.0, cable temperature 20℃

    For average power:VSWR 1.0,ambient temperature 40℃

    Inner conductor temperature 100℃.No solar loading.

    Maximum VSWR and attenuation value shall be 105% off the nominal value

    .


    It's widely used in wireless communication base startion.


    Applications:

    It is usually used in wireless communication base stations.
