    Telecommunication Bow-Type Multi Fiber Indoor Optical Fiber Cable IEC 60794-1

    Ask Lasest Price
    Brand Name : FHDT
    Model Number : Indoor multi-fiber optical cables
    Certification : YD / T 1258, IEC 60794-1
    Price : Negotiable
    Payment Terms : Usually T/T, other terms negotiable
    Supply Ability : Depends on specific specifications and demand
    Delivery Time : Depends on specific specifications and demand
    • Product Details
    • Company Profile

    Telecommunication Bow-Type Multi Fiber Indoor Optical Fiber Cable IEC 60794-1

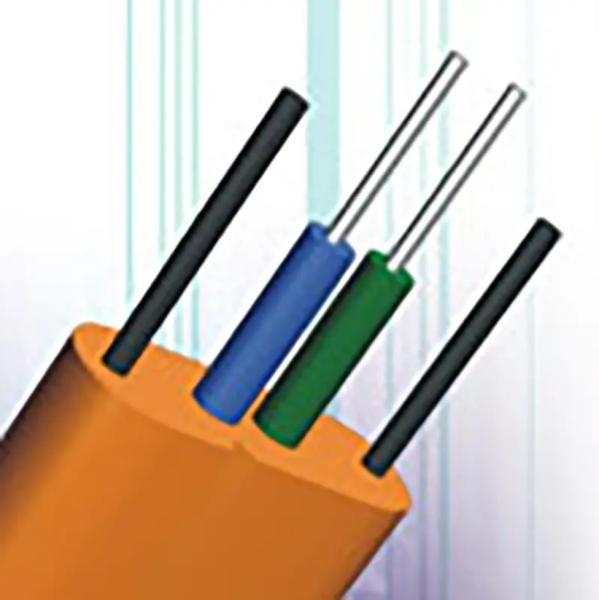

    Bow-type drop cables for telecommunication


    Product Description

    • Cable diameter small, lighter, bending performance is good, easy to stripping, low construction cost.
    • By cold meet technology, speed, flexibility and quick.
    • Field wiring can separate wear tube,also can directly fixed cable camp on the wall.
    • Cable has very high resistance to tension and compression flat force, the self supporting aerial cable can be capable of the span less than 50m.
    • Sheath anti-burns the environmental protection material,fully meet the cable in indoor use of flame retardant performance when the requirements.

    Application Circumstances

    Low-friction bow type cable is used as drop cable for access from outdoor to indoor.


    Optical Fiber

    Optical fiber supplied in this specification meet the requirements of ITU-T G.657


    Fibre attributes
    AttributeDetailValueUnit
    Mode field diameterWavelength1 310nm
    Range of nominal values8.6-9.2µm
    Tolerance±0.4µm
    Cladding diameterNominal125.0µm
    Tolerance±0.7µm
    Core concentricity errorMaximum0.5µm
    Cladding non‑circularityMaximum1.0%
    Cable cut-off wavelengthMaximum1260nm
    Uncabled fibre macrobending lossRadius15107.5mm
    Number of turns1011
    Max. at 1550 nm0.030.10.5dB
    Max. at 1625 nm0.10.21.0dB
    Proof stressMinimum0.69GPa

    Chromatic dispersion parameter

    3-term Sellmeier fitting

    (1 260nm to 1 460 nm)

    λ0min1 300nm
    λ0max1 324nm
    S0min0.073ps/(nm2 × km)
    S0max0.092ps/(nm2 × km)

    Linear fitting

    (1 460 nm to 1 625 nm)

    Min. at 1550 nm13.3ps/(nm × km)
    Max. at 1550 nm18.6ps/(nm × km)
    Min. at 1625 nm17.2ps/(nm × km)
    Max. at 1625 nm23.7ps/(nm × km)
    • Optical fiber supplied in this specification meet the requirements of ITU-T G.652D

    Fibre attributes

    AttributeDetailValueUnit
    Maximum attenuation@ 1310 nm0.40dB/km
    Maximum attenuation after hydrogen ageing@ 1383 nm ±3 nm0.40dB/km
    Maximum attenuation@ 1550 nm0.30dB/km
    Mode field diameterWavelength1310nm
    Range of nominal values8.6-9.2μm
    Tolerance± 0.4μm
    Cladding diameterNominal125.0μm
    Tolerance± 0.7μm
    Core concentricity errorMaximum0.6μm
    Cladding noncircularityMaximum1.0%
    Cable cut-off wavelengthMaximum1260nm
    Macrobending lossRadius30mm
    Number of turns100
    Maximum at 1625 nm0.1dB
    Proof stressMinimum0.69GPa

    Chromatic dispersion parameter

    3-term Sellmeier fitting

    (1260 nm to 1460 nm)

    λ0min1300nm
    λ0max1324nm
    S0min0.073ps/(nm2 × km)

    Product Type

    TypeDescription

    Applications

    range

    Use situation
    GJXVCentral metal strength member, PVC sheath, Bow-type drop cablesBuildings with horizontal and vertical wiringrecommended
    GJXFVNon-metal central strength member, PVC sheath, Bow-type drop cablesGeneral use
    GJXHCentral metal strength member, Non-halogen flame retardant jacket, Bow-type drop cablesrecommended
    GJXFHNon-metal central strength member, Non-halogen, flame retardant jacket,Bow-type drop cablesrecommended
    GJYXCH

    Central metal strength member, Non-halogen flame

    retardant jacket, Self-support Bow-type drop cables

    Outdoor

    Self-support overhead introduction

    recommended
    GJYXFCH

    Non-metal central strength member,Non-halogen

    flame retardant jacket,Self-support Bow-type drop cables

    General use

    According to the range of application. Our Bow-type drop cables can be classified into two series: horizontal and vertical cabling system and self supporting aerial cable.

    Standard:YD/T1997.1-2014.


    Dimensions and Description

    Horizontal and vertical Cabling Bow-type drop cables

    Telecommunication Bow-Type Multi Fiber Indoor Optical Fiber Cable IEC 60794-1


    Main technical parameters


    ItemGJXH/VGJXFH/V
    Cable Diameter (mm)2.0×3.0
    Cable Weight (kg/km)109
    Strength Term (N)Long100100
    Short250250
    Crush Resistance(N/100mm)Long10001000
    Short22002200
    Temperature Range(℃)-40~+60
    Note: Suggest metal strength member is used for the horizontal and vertical cabling system

    Outdoor Self-supporting aerial Bow-type drop cables

    Telecommunication Bow-Type Multi Fiber Indoor Optical Fiber Cable IEC 60794-1


    Main technical parameters


    ItemGJXCH/VGJXFCH/V
    Cable Diameter (mm)2.0×4.0
    Cable Weight (kg/km)2019
    Strength Term (N)Long300300
    Short900900

    Crush Resistance

    (N/100mm)

    Long10001000
    Short22002200
    Temperature range(℃)-40~+60
